DC Brushless Fan: K9225L

　

FAN PHOTO:

GENERAL FEATURES

	Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Casing	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Insulation Resistance	:	10MΩ or over with a DC500V Megger
	Dielectric Withstand Voltage	:	AC700V 1s
	Bearing System	:	Ball Bearing
	Lead Wire	:	UL 1007#24AWG, +Red, -Black.
	Operating Temperature	:	-10°C~+80°C
	storage Temperature	:	-40°C~+85°C
	Expected Life	:	Ball Bearing System	:	45ºC 50,000 Hours.
	Expected Life	:	Sleeve Bearing System	:	45ºC 35,000 Hours.
	Above measurements apply	:	20°C±5°C
	reiutive humidity	:	65%±15%.
	Motor	:	Pantented single-coil DC brushless Motor.
	Motor Protection	:	Auto restart. Polarity Protection.

MODEL:K9225L

Model	Rated Voltage	Operating Voltage	Current	Watt	Speed	AirFlow	Static Pressure	Noise
Model	(VDC)	(VDC)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
K9225D1LB10	12	10 ~14	0.17	2.04	2100	33.00	25	27
K9225D1LB20	12	10 ~14	0.24	2.88	2400	38.10	32	29
K9225D1LB30	12	10 ~14	0.35	4.20	2800	45.00	42	31
K9225D1LB40	12	10 ~14	0.45	5.40	3200	55.10	57	34
K9225D1LB30	12	10 ~14	0.35	4.20	3600	60.00	65	38
K9225D2LB20	24	16 ~28	0.14	3.36	3400	33.00	25	27
K9225D2LB10	24	16 ~28	0.10	2.40	2850	38.10	32	29
K9225D2LB20	24	16 ~28	0.14	3.36	3400	45.00	42	31
K9225D2LB30	24	16 ~28	0.19	4.56	3900	55.10	57	34
K9225D2LB40	24	16 ~28	0.22	5.28	4400	60.00	65	38
*Rotation:Clockwise as seen from the label.
*Special Design is available on request.

　

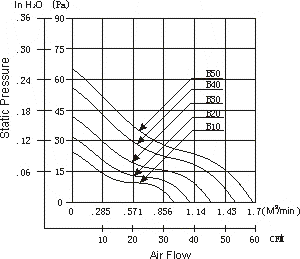

MECHANICAL DRAWINGS			CHARACTERISTIC CURVES

　
