DC Brushless Fan: K8032

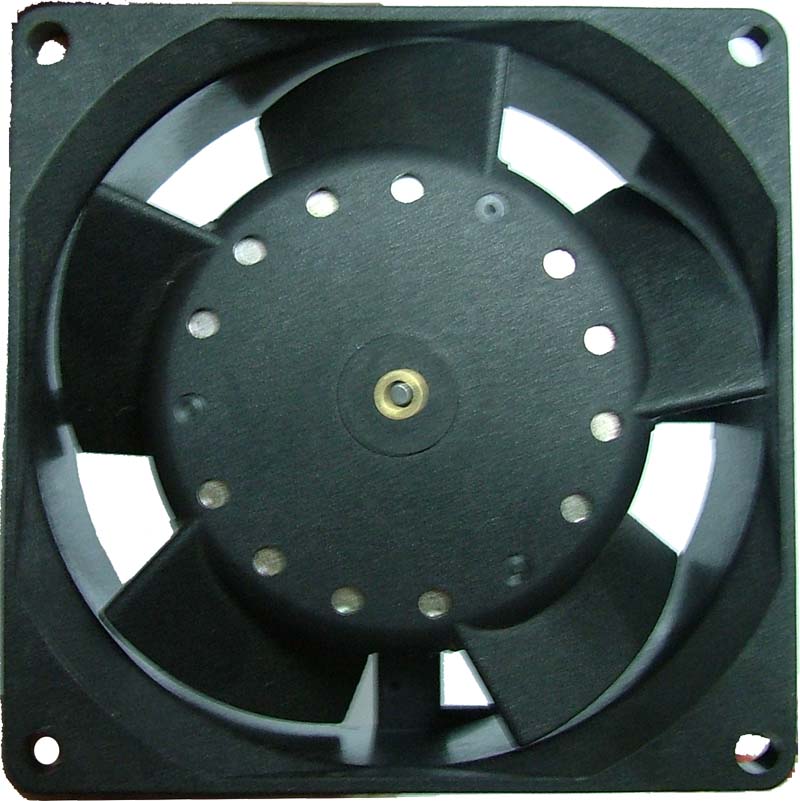

FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Insulation Resistance | : | 10MΩ or over with a DC500V Megger | |||
| Dielectric Withstand Voltage | : | AC700V 1s | |||
| Bearing System | : | Ball Bearing | |||
| Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
| Operating Temperature | : | -10°C~+80°C | |||
| storage Temperature | : | -40°C~+85°C | |||
| Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
| : | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
| Above measurements apply | : | 20°C±5°C | |||
| reiutive humidity | : | 65%±15%. | |||
| Motor | : | Pantented single-coil DC brushless Motor. | |||
| Motor Protection | : | *Auto restart. *Polarity Protection. | |||
MODEL:K8032
| Model | Roted Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
| (VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| K8032D1B10 | 12 | 10 ~14 | 0.17 | 2.04 | 2850 | 38.10 | 37 | 30 |
| K8032D1B20 | 12 | 10 ~14 | 0.24 | 2.88 | 3400 | 45.00 | 54 | 34 |
| K8032D1B30 | 12 | 10 ~14 | 0.35 | 4.20 | 3900 | 53.10 | 65 | 38 |
| K8032D1B40 | 12 | 10 ~14 | 0.45 | 5.40 | 4400 | 60.00 | 79 | 42 |
| K8032D2B10 | 24 | 16 ~28 | 0.10 | 2.40 | 2850 | 38.10 | 37 | 30 |
| K8032D2B20 | 24 | 16 ~28 | 0.14 | 3.36 | 3400 | 45.00 | 54 | 34 |
| K8032D2B30 | 24 | 16 ~28 | 0.19 | 4.56 | 3900 | 53.10 | 65 | 38 |
| K8032D2B40 | 24 | 16 ~28 | 0.22 | 5.28 | 4400 | 60.00 | 79 | 42 |
| *Rotation:Clockwise as seen from the label. | ||||||||
| *Special Design is available on request. | ||||||||

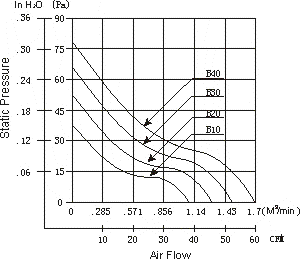

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
 |
 |
 |
