BESTFLOW MOTOR CO.,LTD

　

DC Brushless Fan: K8025H

　

FAN PHOTO:

GENERAL FEATURES

	Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Casing	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Insulation Resistance	:	10MΩ or over with a DC500V Megger
	Dielectric Withstand Voltage	:	AC700V 1s
	Bearing System	:	Ball Bearing
	Lead Wire	:	UL 1007#24AWG, +Red, -Black.
	Operating Temperature	:	-10°C~+80°C
	storage Temperature	:	-40°C~+85°C
	Expected Life	:	Ball Bearing System	:	45ºC 50,000 Hours.
	Expected Life	:	Sleeve Bearing System	:	45ºC 35,000 Hours.
	Above measurements apply	:	20°C±5°C
	reiutive humidity	:	65%±15%.
	Motor	:	Pantented single-coil DC brushless Motor.
	Motor Cortrol	:	Thermal Speed Control. programmable Speed Control
	Motor Protection	:	Auto restart. Polarity Protection.

MODEL:K8025H

Model	Rated Voltage	Operating Voltage	Current	Watt	Speed	AirFlow	Static Pressure	Noise
Model	(VDC)	(VDC)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
K8025D1HB10	12	10 ~14	0.09	1.08	1950	28.50	20	20
K8025D1HB20	12	10 ~14	0.11	1.32	2200	34.00	27	22
K8025D1HB30	12	10 ~14	0.14	1.68	2500	38.50	32	25
K8025D1HB40	12	10 ~14	0.20	2.40	2800	43.60	44	32
K8025D1HB50	12	10 ~14	0.28	3.36	3200	48.50	52	38
K8025D2HB10	24	16 ~28	0.05	1.20	1950	28.50	20	20
K8025D2HB20	24	16 ~28	0.06	1.44	2600	34.00	27	22
K8025D2HB30	24	16 ~28	0.07	1.68	2900	38.50	32	25
K8025D2HB40	24	16 ~28	0.11	2.64	3400	43.60	44	32
K8025D2HB50	24	16 ~28	0.15	3.60	3600	48.50	52	38
*Rotation:Clockwise as seen from the label.
*Special Design is available on request.

　

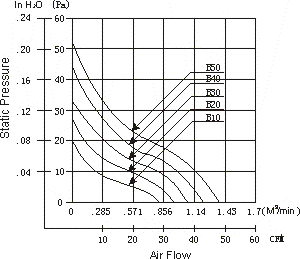

MECHANICAL DRAWINGS			CHARACTERISTIC CURVES

　
