DC Brushless Fan: K8015H

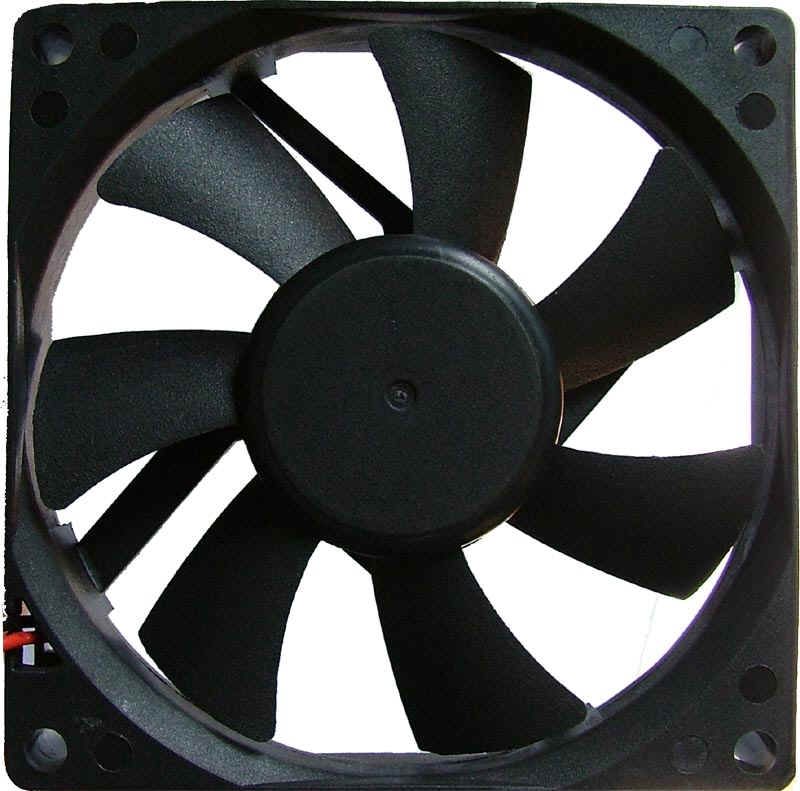

FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Insulation Resistance | : | 10MΩ or over with a DC500V Megger | |||
| Dielectric Withstand Voltage | : | AC700V 1s | |||
| Bearing System | : | Ball Bearing | |||
| Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
| Operating Temperature | : | -10°C~+80°C | |||
| storage Temperature | : | -40°C~+85°C | |||
| Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
| : | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
| Above measurements apply | : | 20°C±5°C | |||
| reiutive humidity | : | 65%±15%. | |||
| Motor | : | Pantented single-coil DC brushless Motor. | |||
| Motor Protection | : | *Auto restart. *Polarity Protection. | |||
MODEL:K8015H
| Model | Rated Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
| (VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| K8015D1HB10 | 12 | 10 ~14 | 0.14 | 1.68 | 2600 | 30.00 | 27 | 27 |
| K8015D1HB20 | 12 | 10 ~14 | 0.17 | 2.04 | 3200 | 36.50 | 36 | 32 |
| K8015D1HB30 | 12 | 10 ~14 | 0.24 | 2.88 | 4000 | 41.50 | 45 | 36 |
| K8015D2HB10 | 24 | 18 ~28 | 0.08 | 1.92 | 4600 | 30.00 | 27 | 27 |
| K8015D2HB20 | 24 | 18 ~28 | 0.10 | 2.40 | 2800 | 36.50 | 36 | 32 |
| K8015D2HB30 | 24 | 10 ~28 | 0.12 | 2.88 | 3400 | 41.50 | 45 | 36 |
| *Rotation:Clockwise as seen from the label. | ||||||||
| *Special Design is available on request. | ||||||||
