DC Brushless Fan: K8010
¡¡
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Insulation Resistance | : | 10M¦¸ or over with a DC500V Megger | |||
| Dielectric Withstand Voltage | : | AC700V 1s | |||
| Bearing System | : | Ball Bearing | |||
| Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
| Operating Temperature | : | -10¡ãC~+80¡ãC | |||
| storage Temperature | : | -40¡ãC~+85¡ãC | |||
| Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
| : | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
| Above measurements apply | : | 20¡ãC¡À5¡ãC | |||
| reiutive humidity | : | 65%¡À15%. | |||
| Motor | : | Pantented single-coil DC brushless Motor. | |||
| Motor Protection | : | *Auto restart. *Polarity Protection. | |||
MODEL:K8010
| Model | Roted Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
| (VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| K8010D1B10 | 12 | 10 ~14 | 0.10 | 1.20 | 2800 | 23.20 | 23 | 25 |
| K8010D1B20 | 12 | 10 ~14 | 0.12 | 1.44 | 3400 | 29.60 | 32 | 28 |
| K8010D1B30 | 12 | 10 ~14 | 0.18 | 2.16 | 4000 | 32.20 | 42 | 31 |
| K8010D1B40 | 12 | 10 ~14 | 0.24 | 2.88 | 4600 | 38.60 | 56 | 34 |
| *Rotation:Clockwise as seen from the label. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

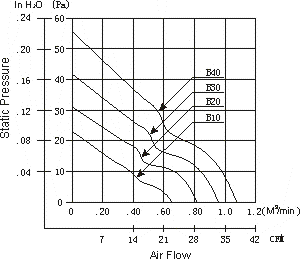

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
