BESTFLOW MOTOR CO.,LTD

DC Brushless Fan: K6025L

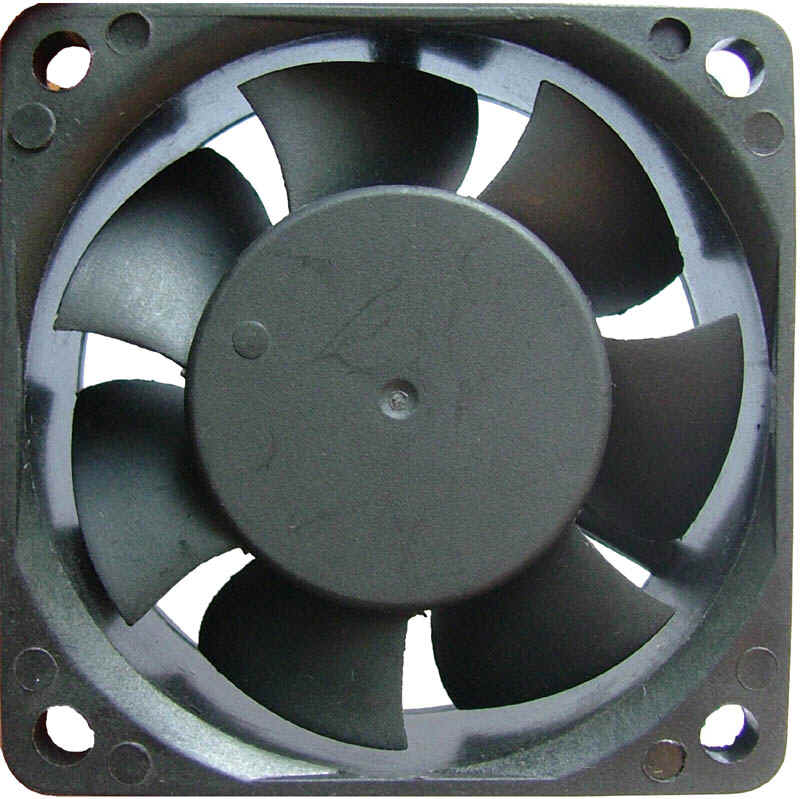

FAN PHOTO:

GENERAL FEATURES

Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
Casing	:	PBT UL94V-O Non-Flammability Reinforced Plastic
Insulation Resistance	:	10MΩ or over with a DC500V Megger
Dielectric Withstand Voltage	:	AC700V 1s
Bearing System	:	Ball Bearing
Lead Wire	:	UL 1007#24AWG, +Red, -Black.
Operating Temperature	:	-10°C~+80°C
storage Temperature	:	-40°C~+85°C
Expected Life	:	Ball Bearing System	:	45ºC 50,000 Hours.
Expected Life	:	Sleeve Bearing System	:	45ºC 35,000 Hours.
Above measurements apply	:	20°C±5°C
reiutive humidity	:	65%±15%.
Motor	:	Pantented single-coil DC brushless Motor.
Motor Protection	:	Auto restart. Polarity Protection.

MODEL:K6025L

Model	Rated Voltage	Operating Voltage	Current	Watt	Speed	AirFlow	Static Pressure	Noise
Model	(VDC)	(VDC)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
K6025D5LB10	5	4 ~6	0.13	0.65	2950	10.85	24	22
K6025D5LB20	5	4 ~6	0.22	1.10	3600	14.70	34	26
K6025D5LB30	5	4 ~6	0.30	1.50	4000	18.50	44	30
K6025D5LB40	5	4 ~6	0.36	1.80	4500	22.10	53	32
K6025D5LB50	5	4 ~6	0.42	2.10	5200	26.10	65	35
K6025D5LB60	5	4 ~6	0.45	2.25	5800	29.40	74	37
K6025D5LB70	5	4 ~6	0.50	2.50	6500	33.90	84	40
K6025D1LB10	12	10 ~14	0.06	0.72	2950	10.85	24	22
K6025D1LB20	12	10 ~14	0.07	0.84	3600	14.70	34	26
K6025D1LB30	12	10 ~14	0.12	1.44	4000	18.50	44	30
K6025D1LB40	12	10 ~14	0.17	2.04	4500	22.10	53	32
K6025D1LB50	12	10 ~14	0.22	2.64	5200	26.10	65	35
K6025D1LB60	12	10 ~14	0.25	3.00	5800	29.40	74	37
K6025D1LB70	12	10 ~14	0.28	3.36	6500	33.90	84	40
K6025D2LB10	24	16 ~28	0.04	0.96	2950	10.85	24	22
K6025D2LB20	24	16 ~28	0.05	1.20	3600	14.70	34	26
K6025D2LB30	24	16 ~28	0.07	1.68	4000	18.50	44	30
K6025D2LB40	24	16 ~28	0.10	2.40	4500	22.10	53	32
K6025D2LB50	24	16 ~28	0.12	2.88	5200	26.10	65	35
K6025D2LB60	24	16 ~28	0.13	3.12	5800	29.40	74	37
K6025D2LB70	24	16 ~28	0.15	3.60	6500	33.40	84	40
*Rotation: Clockwise as seen from the label.
*Special Design is available on request.
