DC Brushless Fan: K6020H
FAN PHOTO:
|
GENERAL FEATURES
Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
Insulation Resistance | : | 10MΩ or over with a DC500V Megger | |||
Dielectric Withstand Voltage | : | AC700V 1s | |||
Bearing System | : | Ball Bearing | |||
Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
Operating Temperature | : | -10°C~+80°C | |||
storage Temperature | : | -40°C~+85°C | |||
Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
: | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
Above measurements apply | : | 20°C±5°C | |||
reiutive humidity | : | 65%±15%. | |||
Motor | : | Pantented single-coil DC brushless Motor. | |||
Motor Cortrol | : | *Thermal Speed Control. *programmable Speed Control | |||
Motor Protection | : | *Auto restart. *Polarity Protection. |
MODEL:K6020H
Model | Rated Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
(VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
K6020D5HB10 | 5 | 4 ~6 | 0.13 | 0.65 | 2800 | 10.85 | 17 | 22 |
K6020D5HB20 | 5 | 4 ~6 | 0.25 | 1.25 | 3600 | 14.70 | 29 | 26 |
K6020D5HB30 | 5 | 4 ~6 | 0.35 | 1.75 | 4500 | 19.25 | 41 | 30 |
K6020D5HB40 | 5 | 4 ~6 | 0.42 | 2.10 | 5200 | 23.10 | 48 | 33 |
K6020D5HB50 | 5 | 4 ~6 | 0.50 | 2.50 | 6500 | 26.68 | 52 | 36 |
K6020D1HB10 | 12 | 10 ~14 | 0.06 | 0.72 | 2800 | 10.85 | 17 | 22 |
K6020D1HB20 | 12 | 10 ~14 | 0.09 | 1.08 | 3600 | 14.70 | 29 | 26 |
K6020D1HB30 | 12 | 10 ~14 | 0.14 | 1.68 | 4500 | 19.25 | 41 | 30 |
K6020D1HB40 | 12 | 10 ~14 | 0.20 | 2.40 | 5200 | 23.10 | 48 | 33 |
K6020D1HB50 | 12 | 10 ~14 | 0.28 | 3.36 | 6500 | 26.68 | 52 | 36 |
K6020D2HB10 | 24 | 16 ~28 | 0.04 | 0.96 | 2800 | 10.85 | 17 | 22 |
K6020D2HB20 | 24 | 16 ~28 | 0.05 | 1.20 | 3600 | 14.70 | 29 | 26 |
K6020D2HB30 | 24 | 16 ~28 | 0.065 | 1.56 | 4500 | 19.25 | 41 | 30 |
K6020D2HB40 | 24 | 16 ~28 | 0.09 | 2.16 | 5200 | 23.10 | 48 | 33 |
K6020D2HB50 | 24 | 16 ~28 | 0.11 | 2.64 | 6500 | 26.68 | 52 | 36 |
*Rotation: Clockwise as seen from the label. | ||||||||
*Special Design is available on request. |

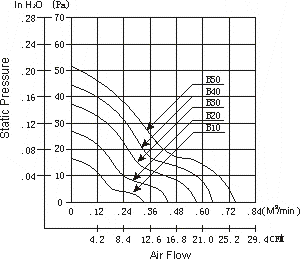

MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
