DC Brushless Fan: K5010

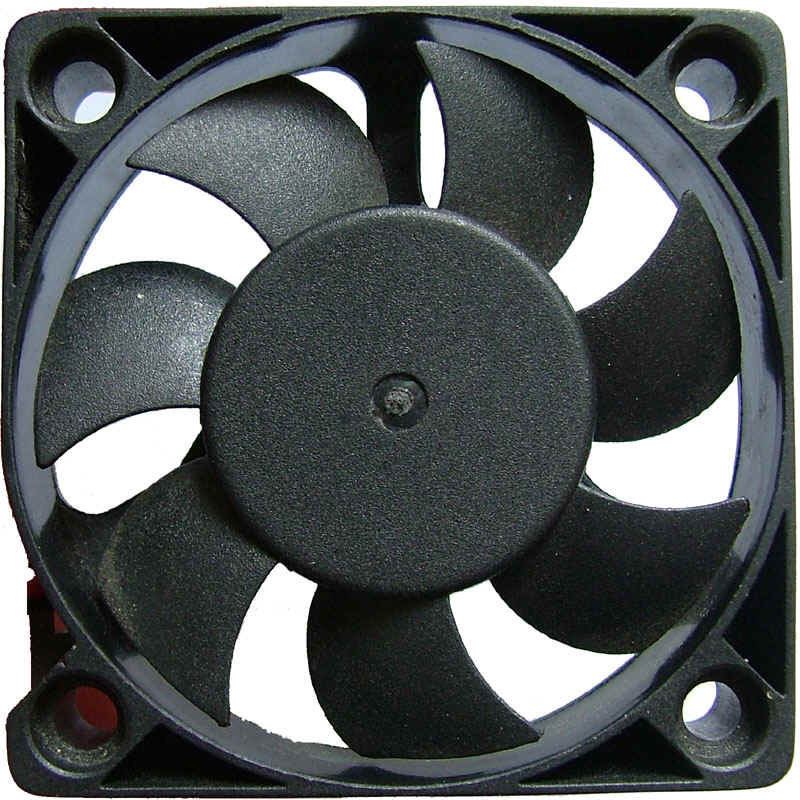

FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Insulation Resistance | : | 10MΩ or over with a DC500V Megger | |||
| Dielectric Withstand Voltage | : | AC700V 1s | |||
| Bearing System | : | Ball Bearing | |||
| Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
| Operating Temperature | : | -10°C~+80°C | |||
| storage Temperature | : | -40°C~+85°C | |||
| Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
| : | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
| Above measurements apply | : | 20°C±5°C | |||
| reiutive humidity | : | 65%±15%. | |||
| Motor | : | Pantented single-coil DC brushless Motor. | |||
| Motor Protection | : | *Auto restart. *Polarity Protection. | |||
MODEL:K5010
| Model | Rated Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
| (VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| K5010D5B10 | 5 | 4 ~6 | 0.10 | 0.50 | 3500 | 6.30 | 16 | 23 |
| K5010D5B20 | 5 | 4 ~6 | 0.16 | 0.80 | 4500 | 8.05 | 25 | 26 |
| K5010D5B30 | 5 | 4 ~6 | 0.30 | 1.50 | 5500 | 10.15 | 36 | 30 |
| K5010D1B10 | 12 | 10 ~14 | 0.05 | 0.60 | 3500 | 6.30 | 16 | 23 |
| K5010D1B20 | 12 | 10 ~14 | 0.09 | 1.08 | 4500 | 8.05 | 25 | 26 |
| K5010D1B30 | 12 | 10 ~14 | 0.13 | 1.56 | 5500 | 10.15 | 36 | 30 |
| *Rotation: Clockwise as seen from the label. | ||||||||
| *Special Design is available on request. | ||||||||

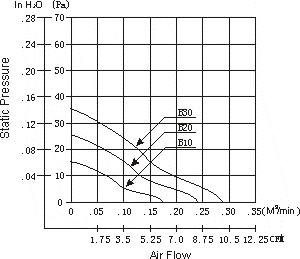

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
 |
 |
 |
