DC Brushless Fan: K12038H

FAN PHOTO:

GENERAL FEATURES

	Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Casing	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Insulation Resistance	:	10MΩ or over with a DC500V Megger
	Dielectric Withstand Voltage	:	AC700V 1s
	Bearing System	:	Ball Bearing
	Lead Wire	:	UL 1007#24AWG, +Red, -Black.
	Operating Temperature	:	-10°C~+80°C
	storage Temperature	:	-40°C~+85°C
	Expected Life	:	Ball Bearing System	:	45ºC 50,000 Hours.
	Expected Life	:	Sleeve Bearing System	:	45ºC 35,000 Hours.
	Above measurements apply	:	20°C±5°C
	reiutive humidity	:	65%±15%.
	Motor	:	Pantented single-coil DC brushless Motor.
	Motor Protection	:	Auto restart. Polarity Protection.

MODEL:K12038H

Model	Rated Voltage	Operating Voltage	Current	Watt	Speed	AirFlow	Static Pressure	Noise
Model	(VDC)	(VDC)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
K12038D1HB10	12	10 ~14	0.45	5.40	2700	100.10	75	42
K12038D1HB20	12	10 ~14	0.65	7.80	3200	125.50	101	47
K12038D1HB30	12	10 ~14	1.00	12.00	3800	148.25	136	51
K12038D1HB40	12	10 ~14	1.45	17.40	4200	163.30	175	53
K12038D1HB50	12	10 ~14	1.90	22.80	4700	181.40	218	56
K12038D2HB10	24	16 ~28	0.25	6.00	2700	100.10	75	42
K12038D2HB20	24	16 ~28	0.35	8.40	3200	125.50	101	47
K12038D2HB30	24	16 ~28	0.45	10.80	3800	148.25	136	51
K12038D2HB40	24	16 ~28	0.65	15.60	4200	163.30	175	53
K12038D2HB50	24	16 ~28	0.85	20.40	4700	181.40	218	56
K12038D4HB10	48	36 ~56	0.16	7.68	2700	100.10	75	42
K12038D4HB20	48	36 ~56	0.20	9.60	3200	125.50	101	47
K12038D4HB30	48	36 ~56	0.28	13.44	3800	148.25	136	51
K12038D4HB40	48	36 ~56	0.38	18.24	4200	163.30	175	53
K12038D4HB50	48	36 ~56	0.45	21.60	4700	181.40	218	56
*Rotation:Clockwise as seen from the label.
*Special Design is available on request.(DC110V,DC220V)

　

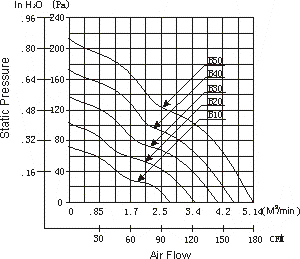

MECHANICAL DRAWINGS			CHARACTERISTIC CURVES

　
