BESTFLOW MOTOR CO.,LTD

　

DC Brushless Fan: K12025

FAN PHOTO:

GENERAL FEATURES

	Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Casing	:	PBT UL94V-O Non-Flammability Reinforced Plastic
	Insulation Resistance	:	10MΩ or over with a DC500V Megger
	Dielectric Withstand Voltage	:	AC700V 1s
	Bearing System	:	Ball Bearing
	Lead Wire	:	UL 1007#24AWG, +Red, -Black.
	Operating Temperature	:	-10°C~+80°C
	storage Temperature	:	-40°C~+85°C
	Expected Life	:	Ball Bearing System	:	45ºC 50,000 Hours.
	Expected Life	:	Sleeve Bearing System	:	45ºC 35,000 Hours.
	Above measurements apply	:	20°C±5°C
	reiutive humidity	:	65%±15%.
	Motor	:	Pantented single-coil DC brushless Motor.
	Motor Protection	:	Auto restart. Polarity Protection.

MODEL:K12025

Model	Rated Voltage	Operating Voltage	Current	Watt	Speed	AirFlow	Static Pressure	Noise
Model	(VDC)	(VDC)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
K12025D1B10	12	10 ~14	0.12	1.44	1600	63.15	18	26
K12025D1B20	12	10 ~14	0.18	2.16	1900	77.45	24	30
K12025D1B30	12	10 ~14	0.25	3.00	2300	88.25	33	33
K12025D1B40	12	10 ~14	0.35	4.20	2600	98.40	42	37
K12025D1B50	12	10 ~14	0.45	5.40	2800	111.25	53	40
K12025D2B10	24	16 ~28	0.08	1.92	1600	63.15	18	26
K12025D2B20	24	16 ~28	0.10	2.40	1900	77.45	24	30
K12025D2B30	24	16 ~28	0.15	3.60	2300	88.25	33	33
K12025D2B40	24	16 ~28	0.22	5.28	2600	98.40	42	37
K12025D2B50	24	16 ~28	0.30	7.20	2800	111.25	53	40
*Rotation:Clockwise as seen from the label.
*Special Design is available on request.

　

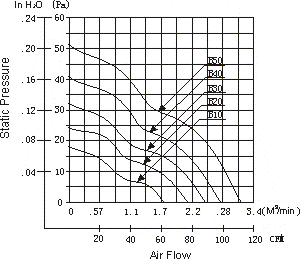

MECHANICAL DRAWINGS			CHARACTERISTIC CURVES

　
