BESTFLOW MOTOR CO.,LTD

AC Capacitor Fan: KC17251H

FAN PHOTO:

GENERAL FEATURES

Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
Venturi	:	Aluminum Alloy
Insulation Resistance	:	100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage	:	AC1500V 2s
Bearing System	:	Ball Bearing
Lead Wire	:	UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature	:	-10°C~+120°C
storage Temperature	:	-40°C~+120°C
Expected Life	:	75,000Hours.
Ambient Temperature	:	14 °F to 248 °F (-10 °C to +120 °C)
Ambient Humidity	:	0 to 75% (noncondensing)
Motor	:	Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC17251H

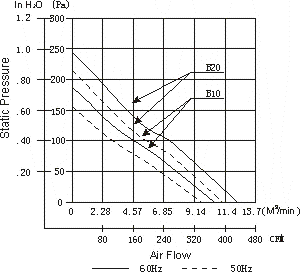

Model	Rated Voltage	Frequency	Current	Input Power	Speed	AirFlow	Static Pressure	Noise
Model	(VAC)	(Hz)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
KC17251A15HB10	115	50	0.25	28.75	2650	340	158	38
KC17251A15HB10	115	60	0.22	25.30	2800	370	184	41
KC17251A15HB20	115	50	0.30	34.50	2950	390	215	44
KC17251A15HB20	115	60	0.28	32.20	3350	440	245	46
KC17251A22HB10	1Phase220	50	0.13	28.60	2650	340	158	38
KC17251A22HB10	1Phase220	60	0.12	26.40	2800	370	184	41
KC17251A22HB20	1Phase220	50	0.15	33.00	2950	390	215	44
KC17251A22HB20	1Phase220	60	0.14	30.80	3350	440	245	46
KC17251A22HB10	3Phase220	50	0.13	28.60	2650	340	158	38
KC17251A22HB10	3Phase220	60	0.11	24.20	2800	370	184	41
KC17251A22HB20	3Phase220	50	0.15	33.00	2950	390	215	44
KC17251A22HB20	3Phase220	60	0.12	26.40	3350	440	245	46
KC17251A38HB10	1Phase380	50	0.07	26.60	2650	340	158	38
KC17251A38HB10	1Phase380	60	0.06	22.80	2800	370	184	41
KC17251A38HB20	1Phase380	50	0.08	30.40	2950	390	215	44
KC17251A38HB20	1Phase380	60	0.07	26.60	3350	440	245	46
KC17251A38HB10	3Phase380	50	0.06	22.80	2650	340	158	38
KC17251A38HB10	3Phase380	60	0.05	19.00	2800	370	184	41
KC17251A38HB20	3Phase380	50	0.08	30.40	2950	390	215	44
KC17251A38HB20	3Phase380	60	0.06	22.80	3350	440	245	46
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.
