AC Capacitor Fan: KC180110
¡¡
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |
| Venturi | : | Aluminum Alloy | |
| Insulation Resistance | : | 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity. | |
| Dielectric Withstand Voltage | : | AC1500V 2s | |
| Bearing System | : | Ball Bearing | |
| Lead Wire | : | UL 1007#24AWG, +Red, -Black.300mm Length | |
| Operating Temperature | : | -10¡ãC~+85¡ãC | |
| storage Temperature | : | -40¡ãC~+85¡ãC | |
| Expected Life | : | 75,000Hours. | |
| Ambient Temperature | : | 14 ¡ãF to 175.1 ¡ãF (-10 ¡ãC to + 85 ¡ãC) | |
| Ambient Humidity | : | 0 to 75% (noncondensing) | |
| Motor | : | Capacitor thermal protector Protected Motor . |
MODEL:KC180110
| Model | Rated Voltage | Frequency | Current | Input Power | Speed | AirFlow | Static Pressure | Noise |
| (VAC) | (Hz) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| KC180110A22B20 | 1Phase220 | 50 | 0.51 | 112.20 | 2750 | 460 | 215 | 62 |
| KC180110A22B20 | 60 | 0.48 | 105.60 | 2950 | 510 | 245 | 70 | |
| Rotation: Counterclockwise as seen from the label side. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

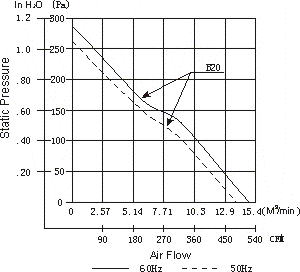

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
