AC Capacitor Fan: KC16060L
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |
| Venturi | : | Aluminum Alloy | |
| Insulation Resistance | : | 100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity. | |
| Dielectric Withstand Voltage | : | AC1500V 2s | |
| Bearing System | : | Ball Bearing | |
| Ambient Temperature | : | 14 ¡ãF to 140 ¡ãF (-10 ¡ãC to +60 ¡ãC) | |
| Ambient Humidity | : | 0 to 75% (non-condensing) | |
| Motor | : | Capacitor thermal protector Protected Motor. |
MODEL:KC16060L
| Model | Rated Voltage | Frequency | Current | Input Power | Speed | AirFlow | Static Pressure | Noise |
| (VAC) | (Hz) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| KC16060A22LB10 | 1Phase220 | 50 | 0.32 | 70.40 | 2650 | 310 | 130 | 50 |
| KC16060A22LB10 | 60 | 0.30 | 66.00 | 2800 | 350 | 155 | 53 | |
| KC16060A22LB10 | 3Phase220 | 50 | 0.27 | 59.40 | 2650 | 310 | 130 | 50 |
| KC16060A22LB10 | 60 | 0.25 | 55.00 | 2800 | 350 | 155 | 53 | |
| Rotation: Counterclockwise as seen from the label side. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

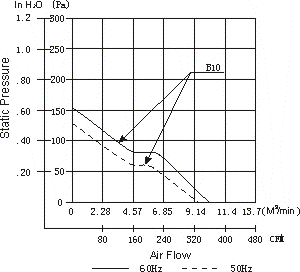

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
