AC Axial Metal Fan: KM9225A
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | Aluminum. | |
| Casing | : | Aluminum. | |
| Insulation Resistance | : | 10M¦¸ or over with a DC500V Megger | |
| Dielectric Withstand Voltage | : | AC1500V 2s | |
| Bearing System | : | Ball Bearing. | |
| Lead Wire | : | UL 1007#24AWG, +Red, -Black.300mm Length | |
| Operating Temperature | : | -10¡ãC~+150¡ãC | |
| storage Temperature | : | -40¡ãC~+150¡ãC | |
| Above measurements apply | : | 20¡ãC¡À5¡ãC | |
| reiutive humidity | : | 75%¡À15%. | |
| Motor | : | Shaded Pole Induction Motor. |
MODEL:KM9225A
| Model | Rated Voltage | Frequency | Current | Input Power | Speed | AirFlow | Static Pressure | Noise |
| (VAC) | (Hz) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| KM9225A15B10 | 115 | 50 | 0.06 | 6.90 | 1950 | 17.00 | 13 | 21 |
| KM9225A15B10 | 60 | 0.05 | 5.75 | 2200 | 22.00 | 17 | 23 | |
| KM9225A15B20 | 115 | 50 | 0.08 | 9.20 | 2300 | 24.00 | 21 | 24 |
| KM9225A15B20 | 60 | 0.07 | 8.05 | 2600 | 30.00 | 28 | 27 | |
| KM9225A15B30 | 115 | 50 | 0.17 | 19.55 | 2800 | 32.00 | 34 | 29 |
| KM9225A15B30 | 60 | 0.13 | 14.95 | 3200 | 37.00 | 48 | 31 | |
| KM9225A22B10 | 220 | 50 | 0.05 | 11.00 | 1950 | 17.00 | 13 | 21 |
| KM9225A22B10 | 60 | 0.045 | 9.90 | 2200 | 22.00 | 17 | 23 | |
| KM9225A22B20 | 220 | 50 | 0.06 | 13.20 | 2300 | 24.00 | 21 | 24 |
| KM9225A22B20 | 60 | 0.055 | 12.10 | 2600 | 30.00 | 28 | 27 | |
| KM9225A22B30 | 220 | 50 | 0.10 | 22.40 | 2800 | 32.00 | 34 | 29 |
| KM9225A22B30 | 60 | 0.08 | 17.60 | 3200 | 37.00 | 48 | 31 | |
| Rotation: Counterclockwise as seen from the label side. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

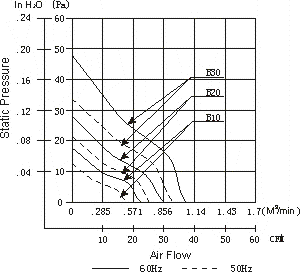

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
