AC Axial Metal Fan: KM16855AL
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | Aluminum. | |
| Casing | : | Aluminum. | |
| Insulation Resistance | : | 10M¦¸ or over with a DC500V Megger | |
| Dielectric Withstand Voltage | : | AC1500V 2s | |
| Bearing System | : | Ball Bearing. | |
| Lead Wire | : | UL 1007#24AWG, +Red, -Black.300mm Length | |
| Operating Temperature | : | -10¡ãC~+130¡ãC | |
| storage Temperature | : | -40¡ãC~+130¡ãC | |
| Above measurements apply | : | 20¡ãC¡À5¡ãC | |
| reiutive humidity | : | 75%¡À15%. | |
| Motor | : | Shaded Pole Induction Motor. |
MODEL:KM16855AL
| Model | Rated Voltage | Frequency | Current | Input Power | Speed | AirFlow | Static Pressure | Noise |
| (VAC) | (Hz) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| KM16855A15LB10 | 115 | 50 | 0.24 | 27.60 | 2850 | 245.0 | 144 | 45 |
| KM16855A15LB10 | 60 | 0.22 | 25.30 | 3100 | 275.0 | 168 | 48 | |
| KM16855A22LB10 | 220 | 50 | 0.30 | 44.00 | 2850 | 245.0 | 144 | 45 |
| KM16855A22LB10 | 60 | 0.29 | 37.40 | 3100 | 275.0 | 168 | 48 | |
| Rotation: Counterclockwise as seen from the label side. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

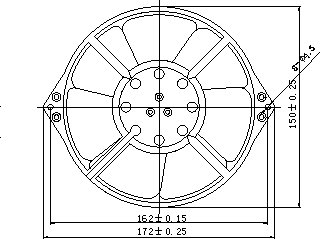

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
