AC Axial Metal Fan: KM12038AH
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | Aluminum. | |
| Casing | : | Aluminum. | |
| Insulation Resistance | : | 10M¦¸ or over with a DC500V Megger | |
| Dielectric Withstand Voltage | : | AC1500V 2s | |
| Bearing System | : | Ball Bearing. | |
| Lead Wire | : | UL 1007#24AWG, +Red, -Black.300mm Length | |
| Operating Temperature | : | -10¡ãC~+130¡ãC | |
| storage Temperature | : | -40¡ãC~+130¡ãC | |
| Above measurements apply | : | 20¡ãC¡À5¡ãC | |
| reiutive humidity | : | 75%¡À15%. | |
| Motor | : | Shaded Pole Induction Motor. |
MODEL:KM12038AH
| Model | Rated Voltage | Frequency | Current | Input Power | Speed | AirFlow | Static Pressure | Noise |
| (VAC) | (Hz) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| KM12038A15HB10 | 115 | 50 | 0.19 | 21.85 | 1950 | 72.00 | 27 | 31 |
| KM12038A15HB10 | 60 | 0.17 | 19.55 | 2400 | 90.00 | 38 | 33 | |
| KM12038A15HB20 | 115 | 50 | 0.24 | 27.60 | 2700 | 108.0 | 45 | 34 |
| KM12038A15HB20 | 60 | 0.22 | 25.30 | 3000 | 115.0 | 60 | 36 | |
| KM12038A15HB30 | 115 | 50 | 0.30 | 34.50 | 3100 | 120.0 | 65 | 38 |
| KM12038A15HB30 | 60 | 0.26 | 29.90 | 3200 | 135.0 | 80 | 42 | |
| KM12038A22HB10 | 220 | 50 | 0.14 | 30.80 | 1950 | 72.00 | 27 | 31 |
| KM12038A22HB10 | 60 | 0.11 | 24.20 | 2400 | 90.00 | 38 | 33 | |
| KM12038A22HB20 | 220 | 50 | 0.20 | 44.00 | 2700 | 108.0 | 45 | 34 |
| KM12038A22HB20 | 60 | 0.17 | 37.40 | 3000 | 115.0 | 60 | 36 | |
| KM12038A22HB30 | 220 | 50 | 0.25 | 55.00 | 3100 | 120.0 | 65 | 38 |
| KM12038A22HB30 | 60 | 0.23 | 50.60 | 3200 | 135.0 | 80 | 42 | |
| Rotation: Counterclockwise as seen from the label side. | ||||||||
| *Special Design is available on request. | ||||||||
¡¡

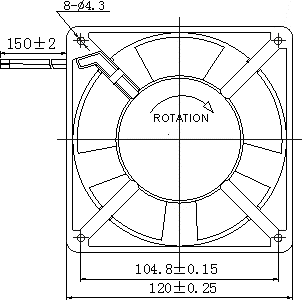

| MECHANICAL DRAWINGS | CHARACTERISTIC CURVES | ||
 |
 |
 |
¡¡
 |
 |
 |
