DC Brushlless Blower Fan: KB9733
FAN PHOTO:
|
|
GENERAL FEATURES
| Impeller | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Casing | : | PBT UL94V-O Non-Flammability Reinforced Plastic | |||
| Insulation Resistance | : | 10MΩ or over with a DC500V Megger | |||
| Dielectric Withstand Voltage | : | AC700V 1s | |||
| Bearing System | : | Ball Bearing | |||
| Lead Wire | : | UL 1007#24AWG, +Red, -Black. | |||
| Operating Temperature | : | -10°C~+80°C | |||
| storage Temperature | : | -40°C~+85°C | |||
| Expected Life | : | Ball Bearing System | : | 45ºC 50,000 Hours. | |
| : | Sleeve Bearing System | : | 45ºC 35,000 Hours. | ||
| Above measurements apply | : | 20°C±5°C | |||
| reiutive humidity | : | 65%±15%. | |||
| Motor | : | Pantented single-coil DC brushlless Motor. | |||
| Motor Protection | : | *Auto restart. *Polarity Protection. | |||
MODEL:KB9733
| Model | Rated Voltage | Operating Voltage | Current | Watt | Speed | AirFlow | Static Pressure | Noise |
| (VDC) | (VDC) | (AMP) | (W) | (RPM) | (CFM) | (Pa) | (dBA) | |
| K9733D1B10 | 12 | 9 ~14 | 0.30 | 3.60 | 2700 | 22.5 | 110 | 44 |
| K9733D1B20 | 12 | 9 ~14 | 0.56 | 6.72 | 3200 | 26.6 | 160 | 48 |
| K9733D1B30 | 12 | 9 ~14 | 0.72 | 8.64 | 3600 | 30.5 | 210 | 51 |
| K9733D2B10 | 24 | 19 ~27 | 0.16 | 3.84 | 2700 | 22.5 | 110 | 44 |
| K9733D2B20 | 24 | 19 ~27 | 0.25 | 6.00 | 3200 | 26.6 | 160 | 48 |
| K9733D2B30 | 24 | 19 ~27 | 0.39 | 9.36 | 3600 | 30.5 | 210 | 51 |
| K9733D4B30 | 48 | 42 ~55 | 0.12 | 5.76 | 2700 | 22.5 | 110 | 44 |
| K9733D4B40 | 48 | 42 ~55 | 0.17 | 8.16 | 3200 | 26.6 | 160 | 48 |
| K9733D4B30 | 48 | 42 ~55 | 0.23 | 11.04 | 3600 | 30.5 | 210 | 51 |
| *Rotation: Clockwise as seen from the label. | ||||||||
| *Special Design is available on request. | ||||||||

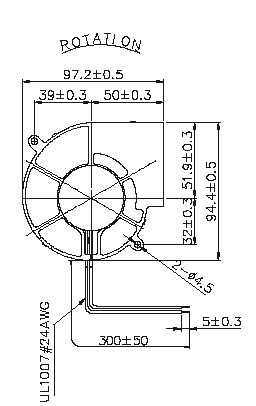

| MECHANICAL DRAWINGS | |||
 |
 |
 |
 |
 |
☆☆☆☆☆ COPYRIGHT ©
2002-2004 BESTFLOW MOTOR CO.,LTD. ALL
RIGHTS RESERVED. ☆☆☆☆☆
January.2002Year
