DC Brushlless Blower Fan: KB12032

　

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Casing : PBT UL94V-O  Non-Flammability Reinforced Plastic
Insulation Resistance : 10MΩ or over with a DC500V Megger
Dielectric Withstand Voltage : AC700V 1s
Bearing System : Ball Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.
Operating Temperature : -10°C~+80°C
storage Temperature : -40°C~+85°C
Expected Life : Ball Bearing System : 45ºC  50,000 Hours.
: Sleeve Bearing System : 45ºC  35,000 Hours.
Above measurements apply : 20°C±5°C
reiutive humidity : 65%±15%.
Motor : Pantented single-coil DC brushlless Motor.
Motor Protection : *Auto restart.  *Polarity Protection.

MODEL:KB12032

Model Rated Voltage Operating Voltage Current Watt Speed AirFlow Static Pressure Noise
(VDC) (VDC) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
K12032D1B10 12 9 ~14 0.35 4.20 2100 31.4 150 44
K12032D1B20 12 9 ~14 0.48 5.76 2500 35.9 190 48
K12032D1B30 12 9 ~14 0.60 7.20 3100 42.5 240 52
K12032D1B40 12 9 ~14 0.90 10.80 3700 50.7 280 58
K12032D2B10 24 19 ~27 0.24 5.76 2100 31.4 150 44
K12032D2B20 24 19 ~27 0.38 9.12 2500 35.9 190 48
K12032D2B30 24 19 ~27 0.45 10.80 3100 42.5 240 52
K12032D2B40 24 19 ~27 0.58 13.92 3700 50.7 280 58
K12032D4B10 48 42 ~55 0.16 7.68 2100 31.4 150 44
K12032D4B20 48 42 ~55 0.22 10.56 2500 35.9 190 48
K12032D4B30 48 42 ~55 0.30 14.40 3100 42.5 240 52
K12032D4B40 48 42 ~55 0.35 16.80 3700 50.7 280 58
*Rotation: Clockwise as seen from the label.
*Special Design is available on request.

　

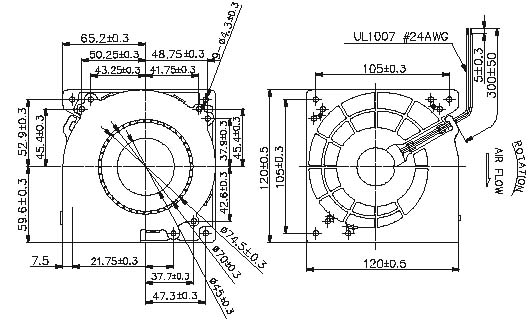

MECHANICAL DRAWINGS

...

　
