Insulated Terminals:

Insulated Ring Terminals:

¡¡

ITEM NO

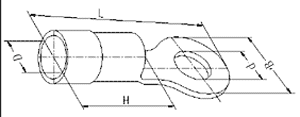

DIMENSIONS
WIRE RANGE
COLOR
d
B
L
H
D
Singe
mm
Telne
mm2
AWG
KRI-RR1
3.7
5.5
16.3
11
4.0
0.57

1.44
0.25

1.65
22-16
RED
KRI-RR2
3.2
5.5
16.3
11
4.0
KRI-RR3
3.7
6.6
17.6
11
4.0
KRI-RR4
4.3
8.0
18.3
11
4.0
KRI-RR5
4.3
6.6
17.6
11
4.0
KRI-RR6
5.7
8.0
18.3
11
4.0
KRI-RR7
6.3
11.6
22.4
11
4.0
KRI-RR8
8.4
11.6
22.4
11
4.0
KRI-RR9
3.7
8.5
18.75
11
4.5
KRI-RB1
3.2
8.5
18.75
11
4.5
1.14

1.82
1.04

2.63
16-14
BLUE
KRI-RB2
3.7
6.6
17.3
11
4.5
KRI-RB3
4.3
8.5
18.75
11
4.5
KRI-RB4
4.3
6.6
17.3
11
4.5
KRI-RB5
5.7
9.5
18.25
11
4.5
KRI-RB6
6.3
12.0
22.0
11
4.5
KRI-RB7
8.4
12.0
22.0
11
4.5
KRI-RB8
10.5
13.6
24.9
11
4.5
KRI-RY1
4.3
9.5
26.3
13.7
6.2
1.82
2.4
2.63
4.6
12-10
YELLOW
KRI-RY2
5.7
9.5
26.3
13.7
6.2
KRI-RY3
6.4
12.0
26.3
13.7
6.2
KRI-RY4
3.7
9.5
26.3
13.7
6.3
1.82

2.89
2.63

6.64
12-10
YELLOW
KRI-RY5
4.3
9.5
26.3
13.7
6.3
KRI-RY6

5.7
9.5
26.3
13.7
6.3
KRI-RY7
6.3
12.0
33.0
13.7
6.3
KRI-RY8
8.4
15.0
34.0
13.7
6.3
KRI-RY9
10.5
15.0
34.0
13.7
6.3
KRI-RR10
3.7
14.0
29.5
17.0
7.0
2.89

3.65
6.64

10.52
8
RED
KRI-RR11
5.3
10.0
29.5
17.0
7.0
KRI-RR12
6.4
12.0
31.0
17.0
7.0
KRI-RR13
8.4
14.0
37.0
17.0
7.0
KRI-RR14
10.5
18.0
38.0
17.0
7.0

¡¡
