AC Axial Fan: K12025AH

FAN PHOTO:

GENERAL FEATURES

Impeller : PBT UL94V-O  Non-Flammability Reinforced Plastic
Casing : PBT UL94V-O  Non-Flammability Reinforced Plastic
Insulation Resistance : 10M¦¸ or over with a DC500V Megger
Dielectric Withstand Voltage : AC1500V 2s
Bearing System : Ball Bearing or Sleeve Bearing
Lead Wire : UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature : -10¡ãC~+80¡ãC
storage Temperature : -40¡ãC~+85¡ãC
Expected Life : Ball Bearing System : 45ºC  50,000 Hours.
: Sleeve Bearing System : 45ºC  35,000 Hours.
Above measurements apply : 20¡ãC¡À5¡ãC
reiutive humidity : 65%¡À15%.
Motor : Shaded Pole Induction Motor.

MODEL:K12025AH

Model Rated Voltage Frequency Current Input Power Speed AirFlow Static Pressure Noise
(VAC) (Hz) (AMP) (W) (RPM) (CFM) (Pa) (dBA)
K12025A15HB10 115 50 0.12 13.80 1450 40.60 23 25
K12025A15HB10 60 0.10 11.50 1800 47.50 27 28
K12025A15HB20 115 50 0.17 19.55 2000 52.50 34 32
K12025A15HB20 60 0.14 16.10 2300 63.50 38 35
K12025A15HB30 115 50 0.28 32.20 2400 68.40 45 36
K12025A15HB30 60 0.21 24.15 2800 79.00 47 38
K12025A20HB10 200 50 0.11 22.00 1450 40.60 23 25
K12025A20HB10 60 0.09 18.00 1800 47.50 27 28
K12025A20HB20 200 50 0.13 26.00 2000 52.50 34 32
K12025A20HB20 60 0.10 20.00 2300 63.50 38 35
K12025A20HB30 200 50 0.16 32.00 2400 68.40 45 36
K12025A20HB30 60 0.14 28.00 2800 79.00 47 36
K12025A22HB10 220 50 0.10 22.00 1450 40.60 23 25
K12025A22HB10 60 0.08 17.60 1800 47.50 27 28
K12025A22HB20 220 50 0.13 28.60 2000 52.50 34 32
K12025A22HB20 60 0.10 22.00 2300 63.30 38 35
K12025A22HB30 220 50 0.15 33.00 2450 68.40 45 36
K12025A22HB30 60 0.12 26.40 2800 79.00 47 38
K12025A23HB10 230 50 0.09 20.70 1450 40.60 23 25
K12025A23HB10 60 0.07 16.10 1800 47.50 27 28
K12025A23HB20 230 50 0.10 23.00 2000 52.50 34 32
K12025A23HB20 60 0.08 18.40 2300 63.50 38 35
K12025A23HB30 230 50 0.13 29.90 2450 68.40 45 36
K12025A23HB30 60 0.10 23.00 2800 79.00 47 38
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

¡¡

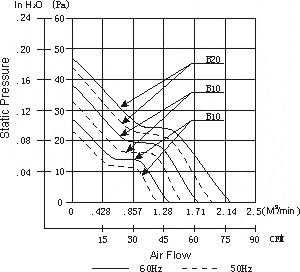

MECHANICAL DRAWINGS   CHARACTERISTIC CURVES

¡¡

¡î¡î¡î¡î¡î COPYRIGHT © 2002-2004 BESTFLOW MOTOR  CO.,LTD. ALL RIGHTS RESERVED. ¡î¡î¡î¡î¡î
January.2002Year

¡¡
