AC Capacitor Fan: KC16066H

FAN PHOTO:

GENERAL FEATURES

Impeller	:	PBT UL94V-O Non-Flammability Reinforced Plastic
Venturi	:	Aluminum Alloy
Insulation Resistance	:	100M ohms or more when 500V DC is applied between the windings and the frame under normal ambient temperature and humidity.
Dielectric Withstand Voltage	:	AC1500V 2s
Bearing System	:	Ball Bearing
Lead Wire	:	UL 1007#24AWG, +Red, -Black.300mm Length
Operating Temperature	:	-10°C~+120°C
storage Temperature	:	-40°C~+120°C
Expected Life	:	75,000Hours.
Ambient Temperature	:	14 °F to 248 °F (-10 °C to +120 °C)
Ambient Humidity	:	0 to 75% (noncondensing)
Motor	:	Capacitor thermal protector Protected Motor For 24 Pole.

MODEL:KC16066H

Model	Rated Voltage	Frequency	Current	Input Power	Speed	AirFlow	Static Pressure	Noise
Model	(VAC)	(Hz)	(AMP)	(W)	(RPM)	(CFM)	(Pa)	(dBA)
KC16066A15HB10	115	50	0.25	28.75	2150	310	150	45
KC16066A15HB10	115	60	0.23	26.45	2400	350	175	48
KC16066A15HB20	115	50	0.30	34.50	2650	370	192	50
KC16066A15HB20	115	60	0.28	32.20	2750	390	215	53
KC16066A15HB30	115	50	0.45	51.75	2950	410	236	55
KC16066A15HB30	115	60	0.42	48.30	3350	475	260	58
KC16066A22HB10	1Phase220	50	0.15	33.00	2150	310	150	45
KC16066A22HB10	1Phase220	60	0.14	30.80	2400	350	175	48
KC16066A22HB20	1Phase220	50	0.17	37.40	2650	370	192	50
KC16066A22HB20	1Phase220	60	0.16	35.20	2800	390	215	53
KC16066A22HB30	1Phase220	50	0.19	41.80	2950	410	236	55
KC16066A22HB30	1Phase220	60	0.18	39.60	3350	475	260	58
KC16066A22HB10	3Phase220	50	0.12	26.40	2150	310	150	45
KC16066A22HB10	3Phase220	60	0.10	22.00	2400	350	175	48
KC16066A22HB20	3Phase220	50	0.16	35.20	2650	370	192	50
KC16066A22HB20	3Phase220	60	0.15	33.00	2800	390	215	53
KC16066A22HB30	3Phase220	50	0.18	39.60	2950	410	236	55
KC16066A22HB30	3Phase220	60	0.17	37.40	3350	475	260	58
KC16066A38HB10	1Phase380	50	0.08	30.40	2100	310	150	45
KC16066A38HB10	1Phase380	60	0.07	26.60	2400	350	175	48
KC16066A38HB20	1Phase380	50	0.11	41.80	2650	370	192	50
KC16066A38HB20	1Phase380	60	0.10	38.00	2800	390	215	53
KC16066A38HB30	1Phase380	50	0.13	49.40	2950	410	236	55
KC16066A38HB30	1Phase380	60	0.12	45.60	3350	475	260	58
KC16066A38HB10	3Phase380	50	0.08	30.40	2100	310	150	45
KC16066A38HB10	3Phase380	60	0.07	26.60	2400	350	175	48
KC16066A38HB20	3Phase380	50	0.11	41.80	2650	370	192	50
KC16066A38HB20	3Phase380	60	0.10	38.00	2800	390	215	53
KC16066A38HB30	3Phase380	50	0.13	49.40	2950	410	236	55
KC16066A38HB30	3Phase380	60	0.12	45.60	3350	475	260	58
Rotation: Counterclockwise as seen from the label side.
*Special Design is available on request.

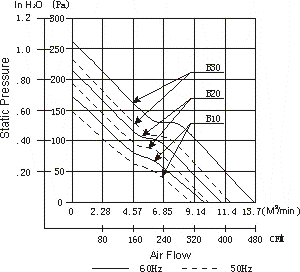

MECHANICAL DRAWINGS			CHARACTERISTIC CURVES
